Texas Instruments Integrated Circuits ICS LM5106MMX/NOPB Gate Driver Chip

Product Categories
KZ TECHNOLOGY (HONGKONG) LIMITED
Contact Now

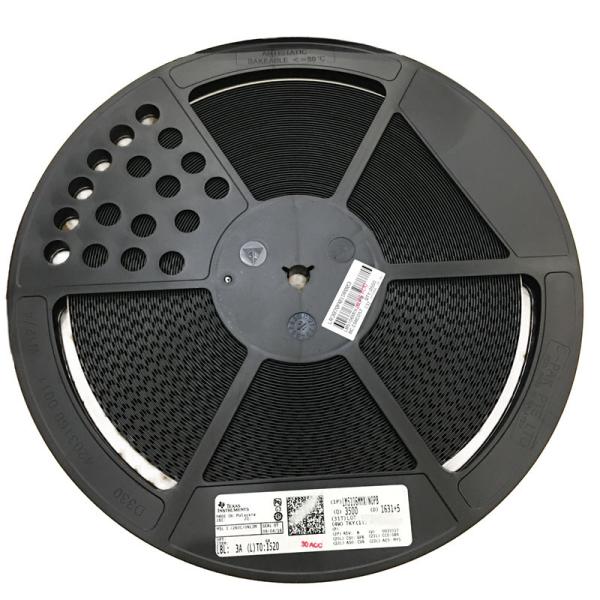

Texas Instruments Integrated Circuits ICS LM5106MMX/NOPB Gate Driver Chip

  • 1
  • 2
  • 3

Brand Name : Texas Instruments

Model Number : LM5106MMX/NOPB

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Available Quantity 4128 Pieces

Delivery Time : Negotiable

Product Model : LM5106MMX/NOPB

Supplier Package : MSOP-10

Brief Description : Power Management ICs

Product Category : Integrated Circuits

Application Areas : Gate Drivers

Date Of Manufacture : Within A Year

Contact Now

LM5106MMX/NOPB Power Management Gate Drivers Chip Integrated Circuits ICS Ti

Description
  • LM5106 100-V Half-Bridge Gate Driver With Programmable Dead-Time
App Characteristics
  • Drives Both a High-Side and Low-Side N-Channel MOSFET
  • 1.8-A Peak Output Sink Current
  • 1.2-A Peak Output Source Current
  • Bootstrap Supply Voltage Range up to 118-V DC
  • Single TTL Compatible Input
  • Programmable Turnon Delays (Dead-Time)
  • Enable Input Pin
  • Fast Turnoff Propagation Delays (32 ns Typical)
  • Drives 1000 pF With 15-ns Rise and 10-ns Fall Time
  • Supply Rail Undervoltage Lockout
  • Low Power Consumption
  • 10-Pin WSON Package (4 mm × 4 mm) and 10-Pin VSSOP Package
Specifications
Product Attribute Attribute Value
Texas Instruments
Product Category: Gate Drivers
RoHS: Details
Half-Bridge Drivers
High-Side, Low-Side
SMD/SMT
MSOP-10
2 Driver
2 Output
1.8 A
8 V
14 V
15 ns
10 ns
- 40 C
+ 125 C
LM5106
Reel
Cut Tape
MouseReel
Brand: Texas Instruments
Features: Dead Time Control
Height: 0.86 mm
Length: 3 mm
Logic Type: TTL
Operating Supply Current: 2.1 mA
Operating Supply Voltage: 7.6 V to 14 V
Product Type: Gate Drivers
Propagation Delay - Max: 56 ns
3500
Subcategory: PMIC - Power Management ICs
Technology: Si
Width: 3 mm
Unit Weight: 0.001083 oz
DOWNLOAD DATASHEET
Application
  • Solid-State Motor Drives
  • Half-Bridge and Full-Bridge Power Converters
  • Two Switch Forward Power Converters
  • Telecommunication Power Converters
  • Industrial Power Converters
